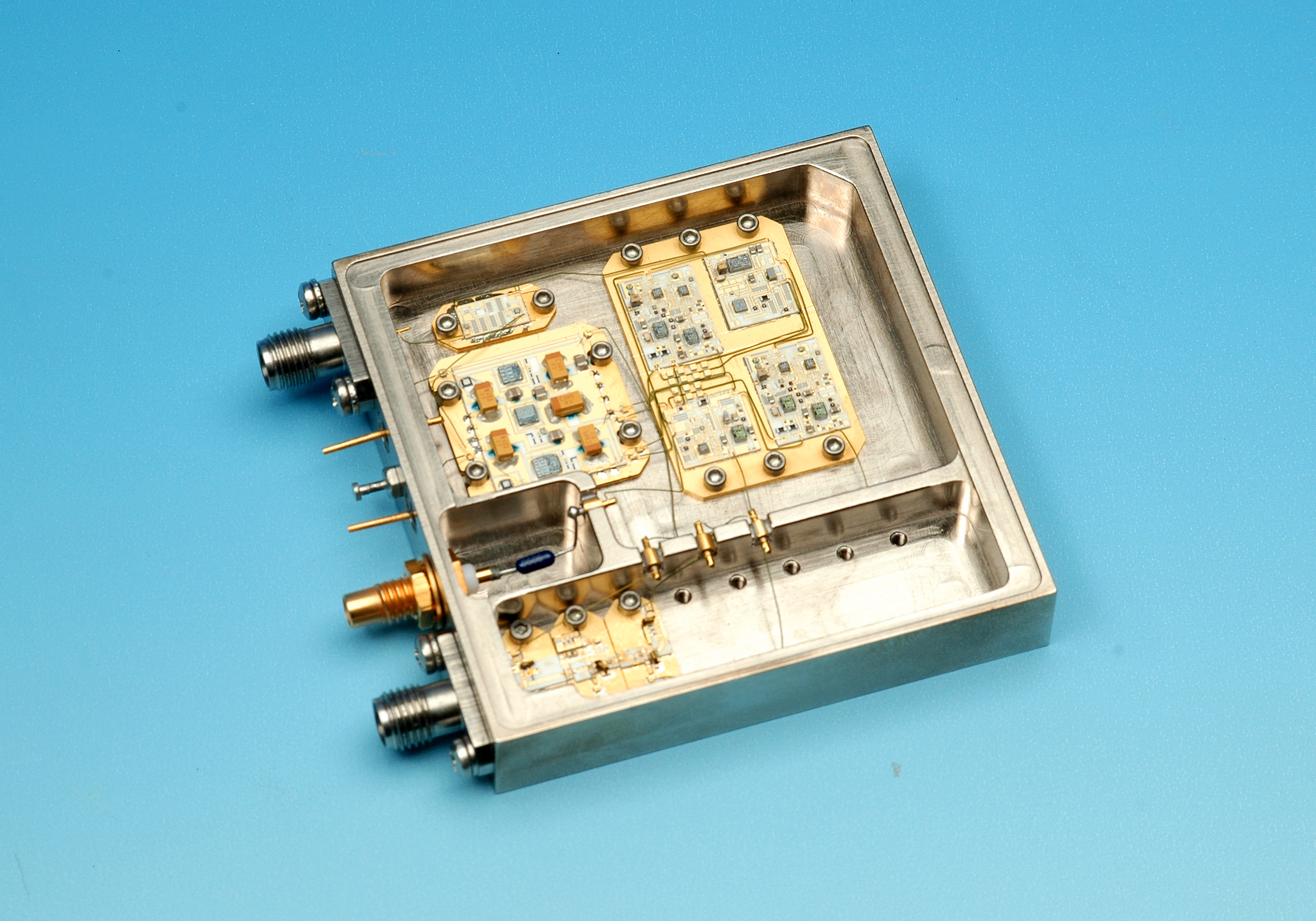

Broadband DC Coupled DLVA
FEATURES
- EXCELLENT LOG LINEARITY
- WIDE FREQUENCY RANGE
- FAST PULSE RESPONSE
- SMALL PACKAGE
- HYBRID CONSTRUCTION
APPLICATIONS
- RADAR WARNING RECEIVERS
- DIRECTORY FINDING RECEIVERS
- IFM RECEIVERS
- CW OR PULSE MEASUREMENT
SPECIFICATIONS |
|
| MODEL | GMDA-D1001 |
| Frequency Range | 0.5 - 18 GHz |
| Logging Range |
-39 to +1 dBm |
| Logging Linearity* |
+/- 0.5 dB |
| Rise Time |
25 ns |
| Recovery Time |
500 ns |
| Input VSWR |
3.0:1 |
| TSS |
-41 dBm |
| *Measured @ band center, referenced to best fit line. | |
| DC Power | +60 MA @ +/- 12 to +15 VDC |
| Dimensions | 2.30" x 2.30" x 0.45" |
