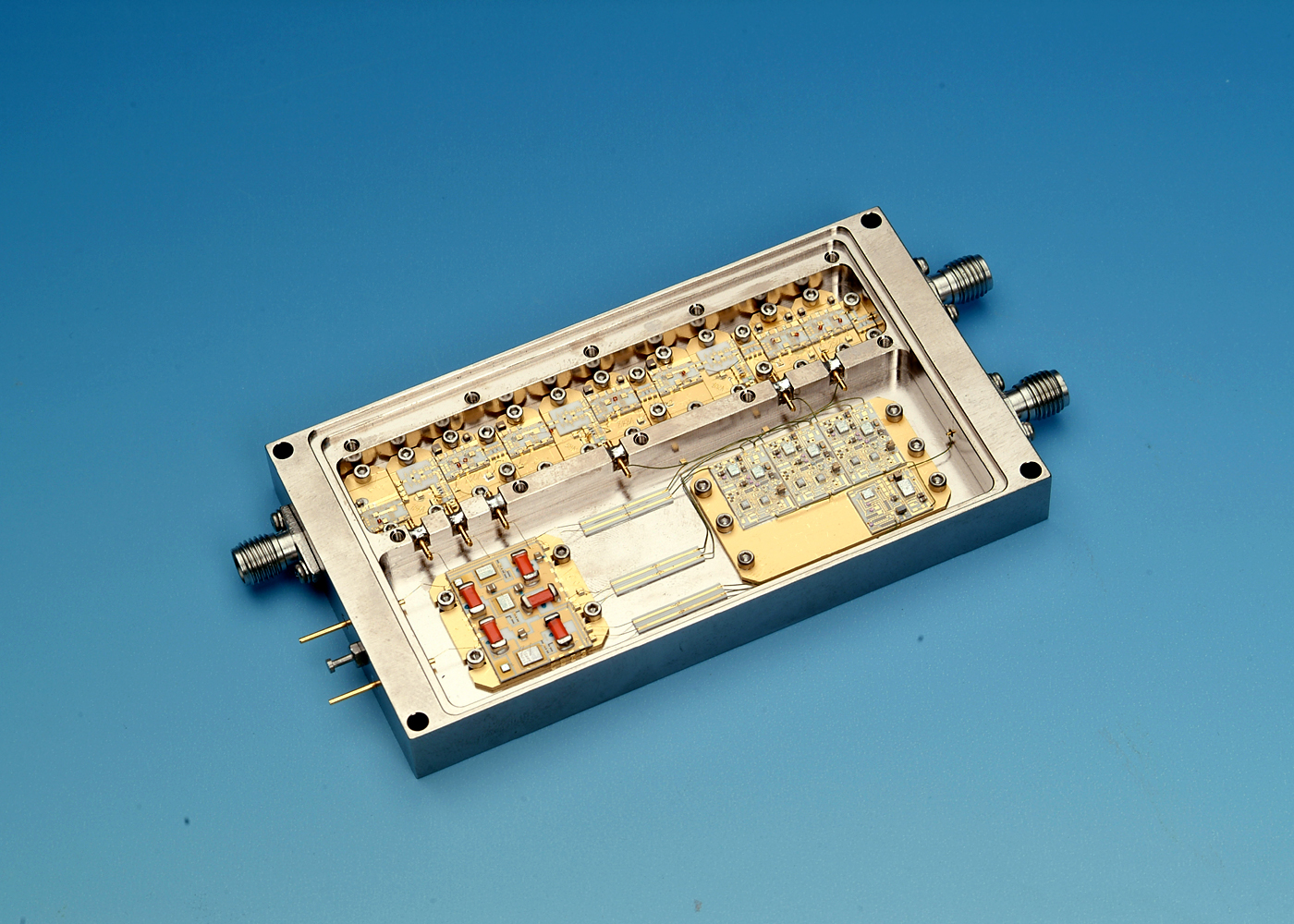

SDLVA Successive Detection
FEATURES
-
LIMITED RF OUTPUT OPTION
-
LOW POWER CONSUMPTION -
FAST POWER RESPONSE -
SMALL PACKAGE -
THIN FIL, CONSTRUCTION
APPLICATIONS
-
RADAR WARNING RECEIVERS -
DIRECTION FINDING RECEIVERS -
IFM RECEIVERS -
CW OR PULSE MEASUREMENT -
PHASE ARRAY ANTENNA SYSTEMS
SPECIFICATIONS |
|||
| MODEL | GMDA-S0502-70 | GMDA-S0206-70 | GMDA-S0618-70 |
| Frequency Range | 0.5 - 2.0 GHz | 2.0 - 6.0 GHz | 6.0 - 18 GHz |
| Logging Range |
-70 to 0 dBm |
-70 to 0 dBm |
-65 to +5 dBm |
| Logging Accuracy* |
+/- 2.5 dB |
+/- 2.5 dB |
+/- 3.0 dB |
| Rise Time |
10 ns |
10 ns |
10 ns |
| Recovery Time |
50 ns |
50 ns |
50 ns |
| Input VSWR |
2.0:1 |
2.0:1 |
2.5:1 |
| TSS |
-75 dBm |
-75 dBm |
-70 dBm |
| *Logging Accuracy includes the effects of Log Linearity, Frequency, Flatness, and Temperature. | |||
| DC Power is higher with limited RF Output. | |||
| Dimensions 3.6" x 2.0" x 0.4" |
