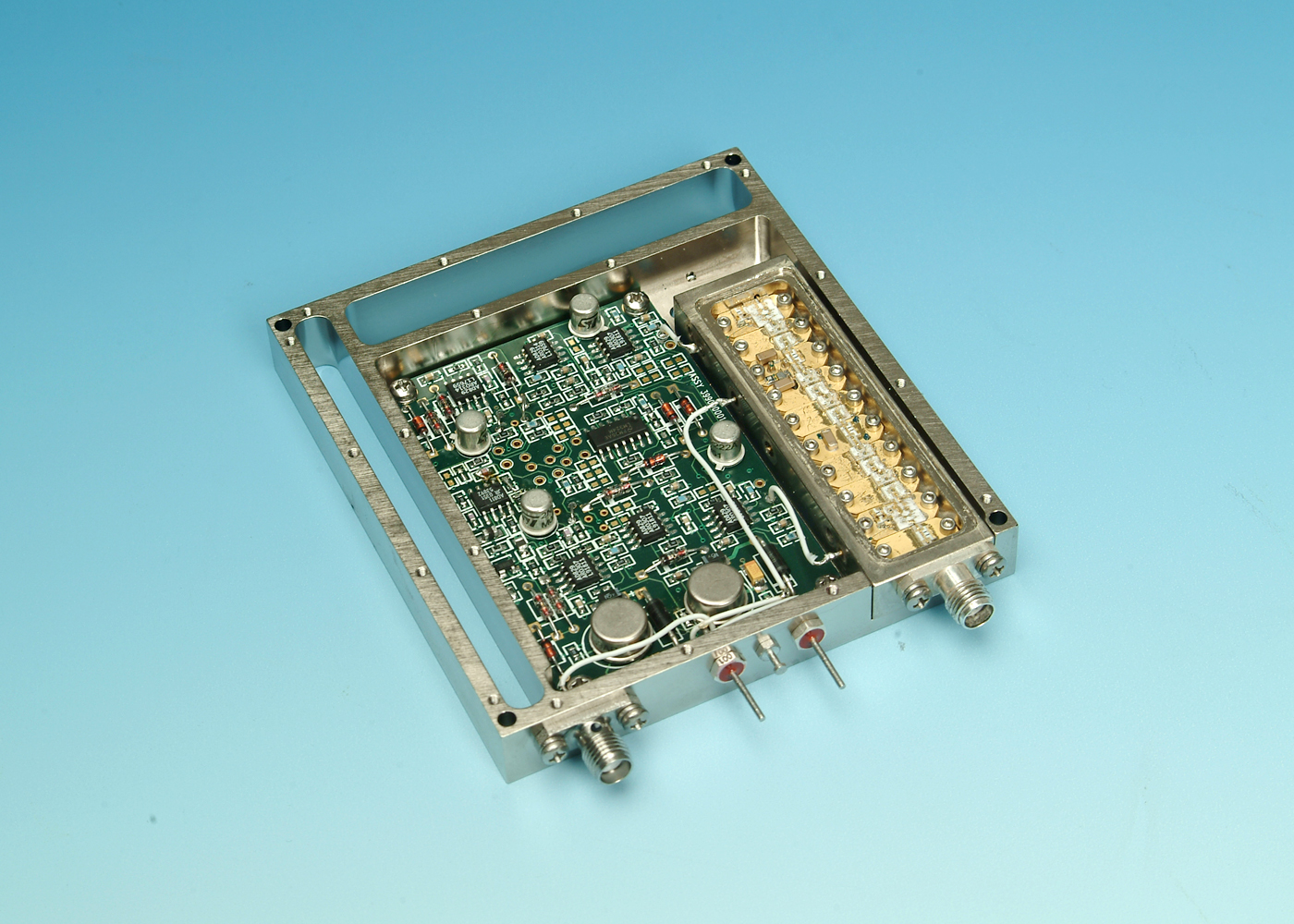

Extended Dynamic Range DLVA
FEATURES
-
WIDE DYNAMIC RANGE
-
WIDE FREQUENCY RANGE -
FAST PULSE RESPONSE -
SMALL PACKAGE -
HYBRID CONSTRUCTION
APPLICATIONS
-
RADAR WARNING RECEIVERS -
DIRECTION FINDING RECEIVERS -
IFM RECEIVERS -
CW OR PULSE MEASUREMENT
|
| MODEL |
GMDA-E0520-70 |
GMDA-E0206-70
|
GMDA-E0618-75**
|
GMDA-D1004*** |
Frequency Range
|
0.5 - 2.0 GHz
|
2.0 - 6.0 GHz
|
6.0 - 18 GHz
|
2.0 - 18.0 GHz
|
Logging Range
|
-60 to 10 dBm
|
-60 to 10 dBm
|
-70 to 5 dBm
|
-60 to +7 dBm
|
Logging Accuracy*
|
+/- 2.0 dB
|
+/- 2.0 dB
|
+/- 2.5 dB
|
--
|
Rise Time
|
25 ns
|
25 ns
|
25 ns
|
25 ns
|
Recovery Time
|
500 ns
|
500 ns
|
500 ns
|
500 ns
|
Input VSWR
|
2.0:1
|
2.0:1
|
2.5:1
|
2.0:1
|
TSS
|
-65 dBm
|
-65 dBm
|
-75 dBm
|
-65 dBm
|
Logging Slope
|
--
|
--
|
--
|
25mV / dB Nominal
|
| *Logging Accuracy includes the effects of Log Linearity, Frequency Flatness, and Temperature. |
|
| DC Power | 300 MA @ 12 to 15 VDC |
| 100 MA @ 12 to 15 VDC | |
| **Dimensions | 3.0" x 2.9" x 0.5" For 6-18 GHz unit only |
| *** Dimensions | 3.5" x 3.2" x 0.5" |
SPECIFICATIONS
| MODEL | GMDA-E1006 |
| Frequency Range |
0.5 -1.0 GHz |
| Logging Range | -60 to 10 dBm |
| Logging Linearity |
+/- 1.0 dB |
| Rise Time |
20 ns |
| Recovery Time |
500 ns |
| Input VSWR |
2.0:1 |
| TSS |
-65 dBm |
DC Power 300 MA @ 12 to 15 VDC 100 MA @ -12 to -15 VDC Dimensions 3.5" x 3.2" x 0.5"
