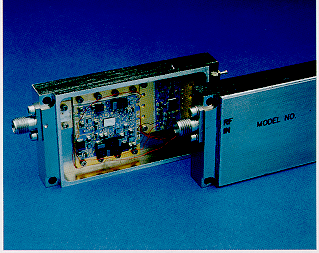

CW Immune (Pseudo-AC Coupled) DLVA
FEATURES
- EXCELLENT LOG LINE LINEARITY
- WIDE FREQUENCY RANGE
- FAST PULSE RESPONSE
- SMALL PACKAGE
- HYBRID CONSTRUCTION
APPLICATIONS
- RADAR WARNING RECEIVERS
- DF RECEIVERS
- IFM RECEIVERS
- PULSE ON CW MEASUREMENT
SPECIFICATIONS |
||||
| MODEL | GMDA-D0218-45 | GMDA-D0520-45 | GMDA-D0206-45 | GMDA-D0618-45 |
| Frequency Range | 2.0 - 18 GHz | 0.5 - 2.0 GHz | 2.0 - 6.0 GHz | 6.0 - 18 GHz |
| Logging Range | -40 to 5 dBm |
-40 to 5 dBm |
-40 to 5 dBm |
-40 to 5 dBm |
| Logging Linearity* |
+/- 0.5 dB |
+/- 0.5 dB |
+/- 0.5 dB |
+/- 0.5 dB |
| Rise Time |
20 ns |
20 ns |
20 ns |
20 ns |
| Recovery Time |
500 ns |
500 ns |
500 ns |
500 ns |
| Input VSWR |
3.0:1 |
2.0:1 |
2.0:1 |
2.5:1 |
| TSS |
-43 dBm |
-45 dBm |
-45 dBm |
-43 dBm |
| *Best fit @ band center | |
| DC Power | +80 MA @ +12 to +15 VDC |
| -80 MA @ -12 to -15 VDC | |
| Dimensions | 2.8" x 2.2" x 0.5" |
